When shopping for a big brake kit for a Model S Plaid, it's easy to compare kits by the numbers on the box: rotor diameter, piston count, price. A 10-piston caliper sounds better than a 6-piston. A bigger rotor sounds better than a smaller one.
But braking performance doesn't come from any single part. It comes from how well the whole system works together. On a car as heavy, fast, and software-controlled as the Plaid, bigger isn't better unless everything is paired properly.
A Brake System Is a Matched System
When you press the brake pedal, several components work together:
- Master cylinder: converts pedal input into hydraulic pressure and moves a set volume of brake fluid.
- Caliper pistons: receive that fluid and press the pads against the rotor. Total piston area decides how much fluid is needed and how much clamping force is produced.
- Pads: pad surface area and compound decide how that clamping force becomes friction.
- Rotors: absorb and release the heat created by every stop.
- Firmware: on a Tesla, the brake booster, ABS, stability control, and regenerative braking are all governed by software calibrated around the factory brake hardware.
Change one of these without accounting for the others, and the system no longer behaves the way it was engineered to.
Why More Pistons Can Make Things Worse
Many generic big brake kits use large multi-piston calipers with a much bigger total piston surface than stock. That can look like an upgrade, but the factory master cylinder and brake calibration weren't designed for it.
When total piston area grows but the master cylinder stays the same, the system has to move more fluid to do the same job. The result can be:
- Insufficient pressure at the caliper for the pedal input the car expects
- Longer pedal travel and a softer, less confident pedal
- Brake behavior the firmware wasn't calibrated for, affecting how ABS and stability control respond at the limit
In other words, a caliper that is bigger on paper can deliver a brake that feels and performs worse in the real world.
What Tesla Did with the Track Package
The best proof that bigger pistons aren't the answer comes from Tesla's own Track Package brakes. Compare the factory setup with the Track Package setup:
| Stock | Track Package | |
|---|---|---|
| Front caliper | 4-piston | 6-piston |
| Front piston sizes | 42 mm / 44 mm | 32 mm / 28 mm / 27 mm |
| Front pad area | 69 cm² | 150 cm² |
| Rear caliper | Single-piston floating | 4-piston |
| Rear piston sizes | 42.8 mm | 32 mm / 28 mm |
| Rear pad area | 43 cm² | 115 cm² |
Notice what Tesla did. The Track Package uses more pistons, but smaller ones: 27–32 mm, versus the 42–44 mm pistons in the stock front caliper. At the same time, pad area more than doubles up front (69 → 150 cm²) and nearly triples at the rear (43 → 115 cm²).
In fact, the Track Package front caliper has roughly 30% less effective piston area than the stock front caliper, while the rear stays about the same. So why would a track-focused brake use smaller pistons? The engineering principles explain it.
Piston area sets clamping force. Pad area handles heat.
These two numbers do different jobs. Piston area, multiplied by hydraulic pressure, determines how hard the pads clamp the rotor. Pad area doesn't increase friction force on its own. Instead, a larger pad absorbs and spreads more heat, lowers the pressure on each square centimeter of pad, and wears more slowly and evenly. For track use, heat capacity is exactly what you need.
Smaller pistons balance a bigger rotor and stronger pad
Brake torque at each wheel depends on four things:
Brake torque = hydraulic pressure × piston area × pad friction coefficient × rotor effective radius
A larger rotor increases the effective radius. A track-oriented pad increases the friction coefficient. If piston area stayed the same, the front brakes would become much stronger for the same pedal input, upsetting pedal feel and front-to-rear brake bias. Reducing piston area offsets those gains, so the torque produced per unit of pressure stays within the range the brake firmware is calibrated for.
Smaller pistons give a firmer, shorter pedal
The master cylinder moves the same volume of fluid either way. Less total piston area means the calipers need less fluid to clamp, which translates into shorter pedal travel and a firmer, more precise pedal, especially valuable during repeated hard stops on track. This is the opposite of what happens when an oversized aftermarket caliper is paired with the factory master cylinder.
Staggered piston sizes keep the pad flat
Why 32, 28, and 27 mm instead of six identical pistons? As the rotor spins, friction drags the pad in the direction of rotation and tilts it slightly, loading the leading edge harder than the trailing edge. With identical pistons, the pad wears into a wedge, known as taper wear. Placing the smallest piston at the leading edge and progressively larger pistons toward the trailing edge evens out pad pressure. The longer the pad, the more this matters, and the Track Package front pad is more than twice the size of stock.
Even pad pressure also means more uniform heat, a more even transfer layer on the rotor, and less vibration and noise. All of these are especially important with carbon-ceramic rotors.
Everything is tuned together
Piston sizes, pad area, rotor size, master cylinder volume, front-to-rear bias, and Track Package firmware form one calibrated package. The goal isn't simply "more brake force." It's more heat capacity, more consistency, and a pedal that stays predictable lap after lap. That is the balance a generic kit with oversized pistons throws away, and the balance the SEVP Autobahn BBK keeps by using the same genuine Tesla calipers.
Brake Bias: The Factor Most Kits Ignore
Brake bias is how braking force is split between the front and rear axles. Getting it right is essential to a "better brake." A well-balanced car stops straighter, more predictably, and more confidently.
Fitting oversized calipers on one axle changes clamping force at that axle, which shifts brake bias away from what the car was set up for. Too much front bias can lengthen stops and overwork the front brakes. Too much rear bias can make the car unstable under heavy braking. On a 2,000+ kg car at triple-digit speeds, that balance matters.
How the SEVP Autobahn BBK Is Different
The SEVP Autobahn Big Brake Kit was engineered specifically for the Model S. Instead of adding the biggest caliper we could find, we started from the configuration the car was already designed for:

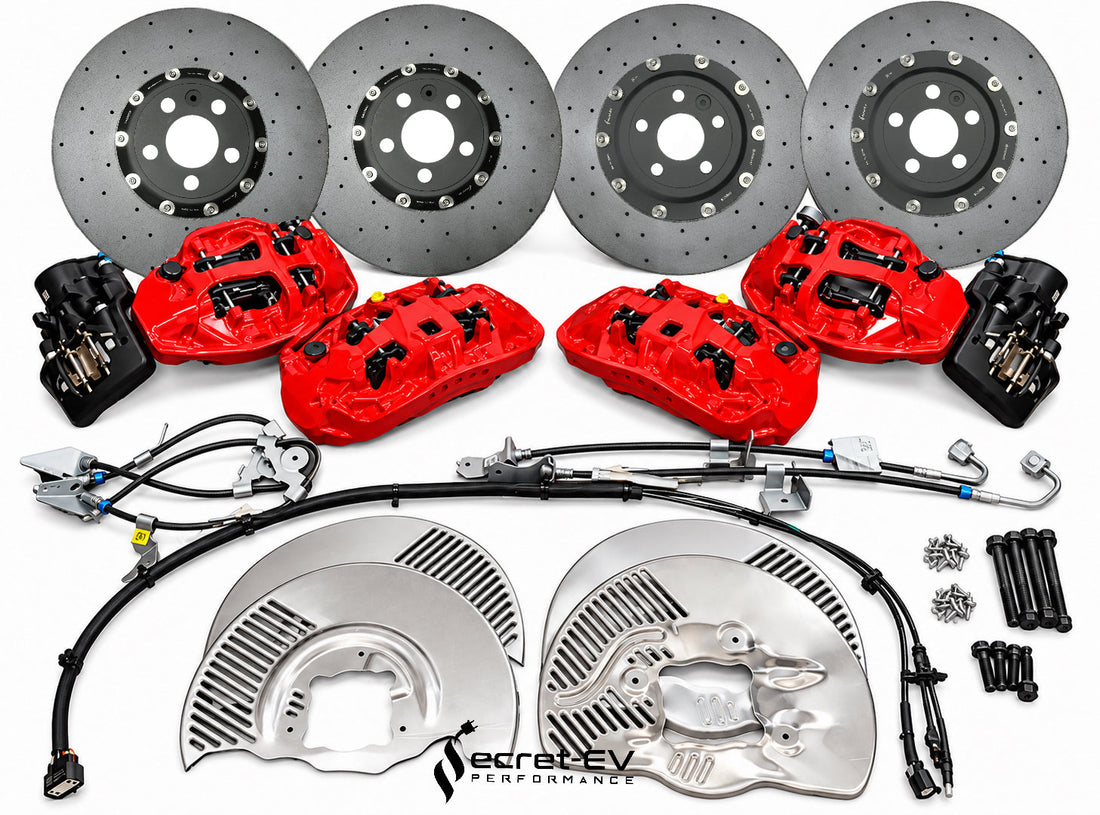

- Genuine Tesla 6-piston front and 4-piston rear calipers
- Piston size and pad surface paired with Track Package firmware, so the master cylinder, brake bias, and software calibration stay in harmony
- SEVP 410 mm carbon-silicon carbide rotors (40 mm front, 32 mm rear) for heat capacity and fade resistance
- Genuine Tesla hoses, dust shields, harnesses, and hardware for a direct fit on supported vehicles
That makes it the closest alternative equivalent to the Tesla Track Package brake setup. The only difference is we supply the rotor.
Looks vs. a True Upgrade
There's nothing wrong with wanting brakes that look great behind your wheels, and the Autobahn kit is available with red or gold calipers. But if you're upgrading because you want consistent, fade-resistant stopping power on track or at high speed, judge a kit by how well it's matched to your car, not by piston count.
Questions to Ask Before Buying Any Big Brake Kit
- Was the kit engineered specifically for the Model S Plaid, or adapted from a generic design?
- How does the total piston area compare to stock, and how does it work with the factory master cylinder?
- How does the kit affect front-to-rear brake bias?
- Is it compatible with the car's brake firmware and stability control calibration?
- What pads are recommended, and are they suited to carbon-ceramic rotors?
- What warranty covers the rotors?
If a seller can't answer these clearly, that tells you something.
